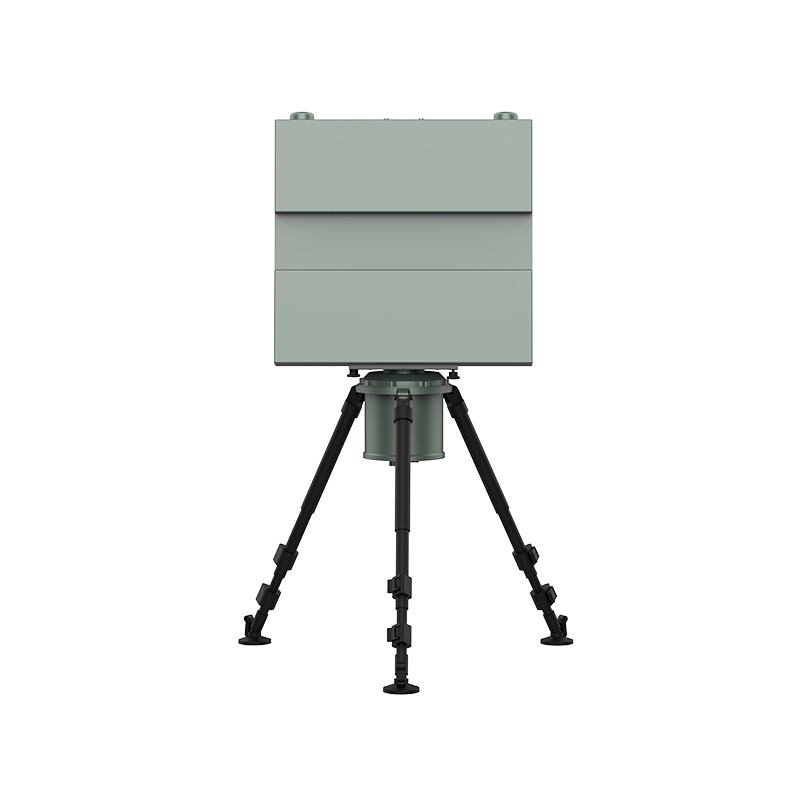

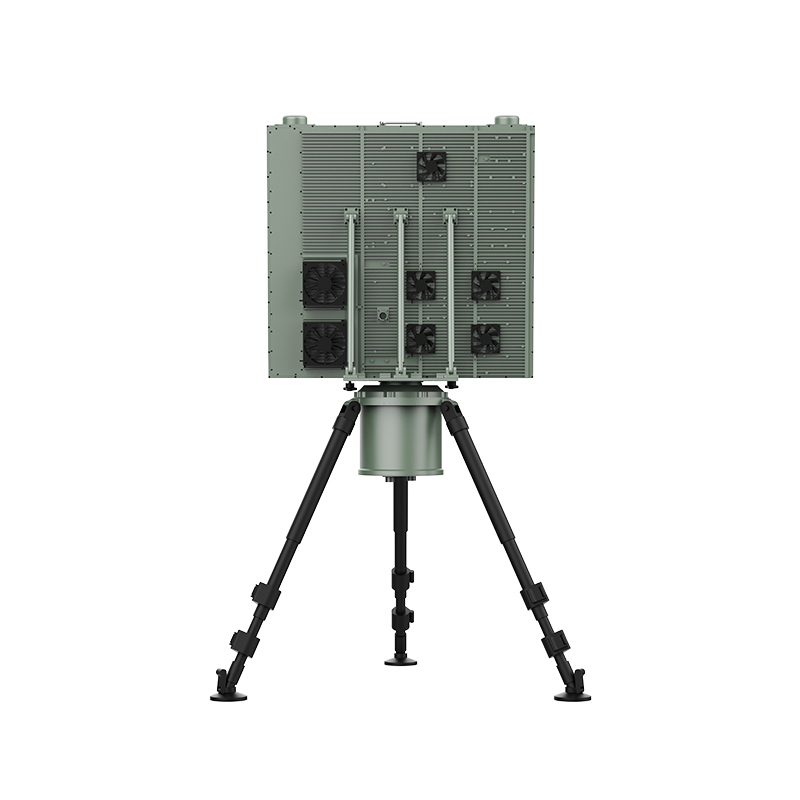

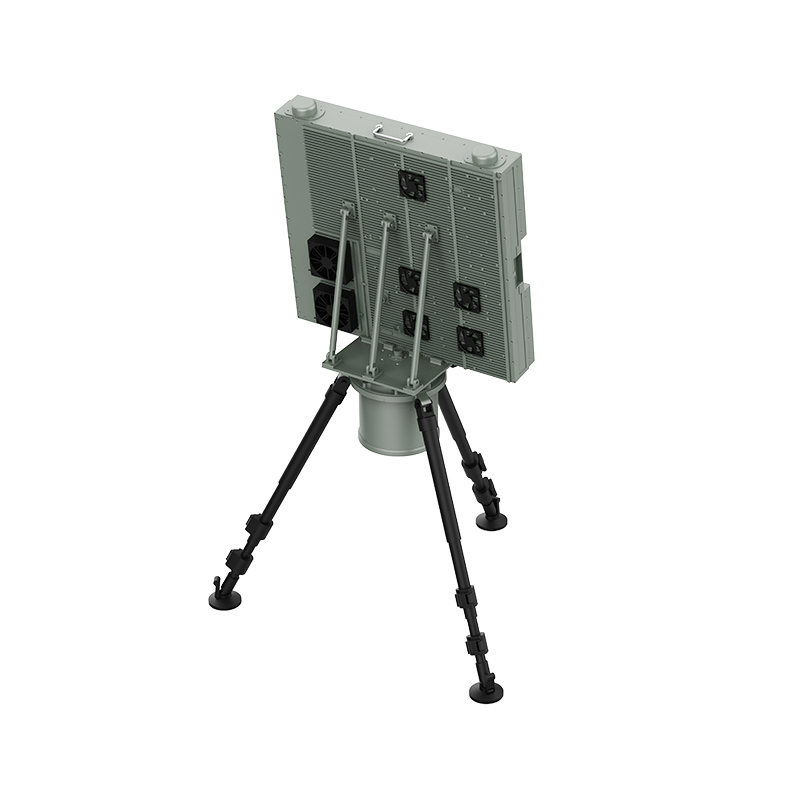

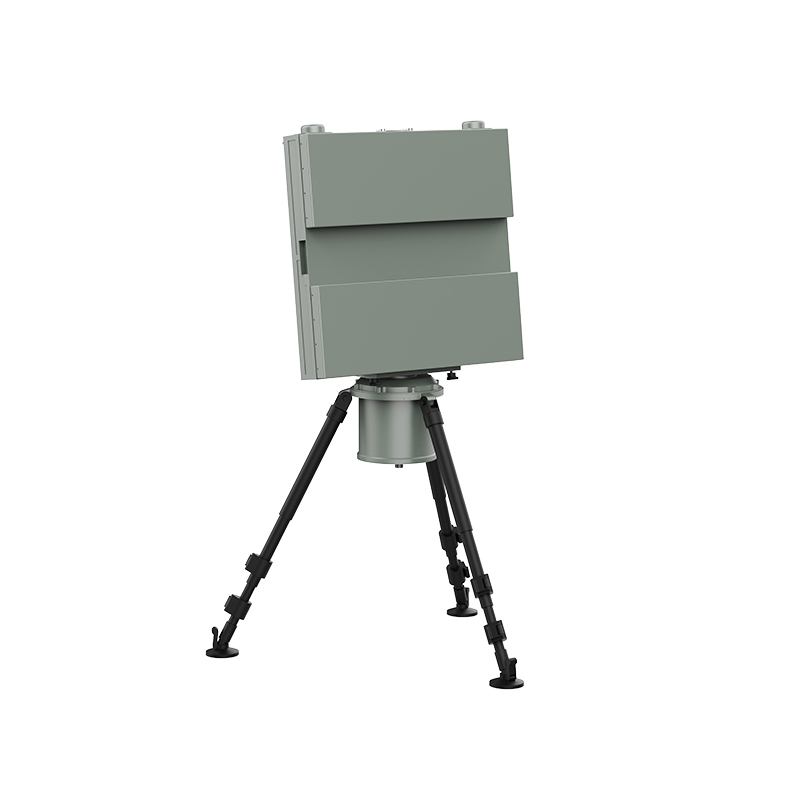

RDN-160 Sea surface and low altitude surveillance radar is mainly used to detect the moving target in the sea and low altitude flying target above the sea surface. It can automatically detect and locate the ship, low altitude light aircraft, helicopter and UAV. It can be used in all-weather conditions for military, police and coastal guards to monitor and give early alarms for those sensitive areas as coastline, airport, seaport and fortress etc. It is special suitable for those reconnaissance activities such as drug inspection, anti-smuggling, anti-illegal fishing etc.
| Working frequency band | Technical system | Target type | Detecting distance (Sea stage 3) | Detection accuracy (RMS) | Max target capacity | Network capability |
X band | Frequency modulation continuous wave | Warship, yacht, canoe, patrol plane | Yacht/Canoe: 15km～25km Large ships: Up to horizon (Normal situation) Large ships: 200～280km (With evaporation duct effect) Patrol plane: 50km | Distance≤10m, azimuth ≤0.2° | 1000 batches | Yes |
Features
1.Search and detect the target on sea surface.
2.Search and track the low altitude target in real time.
3.Report the information of the sea and of the low altitude to the superior command center.
4.Send the target information to the subordinate firing unit.
5.Unattended operation function.
